Overhead Conductors

It is used during outage of power crossing lines, to avoid shocks from the induced current in the conductor.

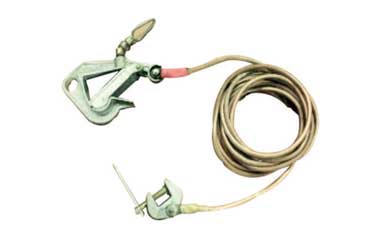

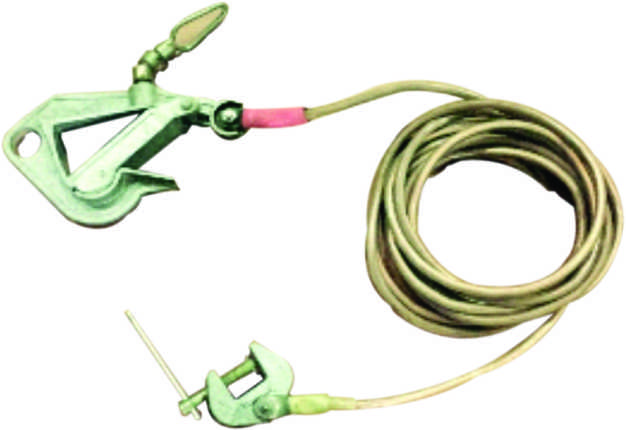

The static discharge cable is designed to use during outage of power crossing lines, to avoid shocks from the induced current in the conductor one end of the cable in fitted with conductor catcher while other end with Tower leg catcher.

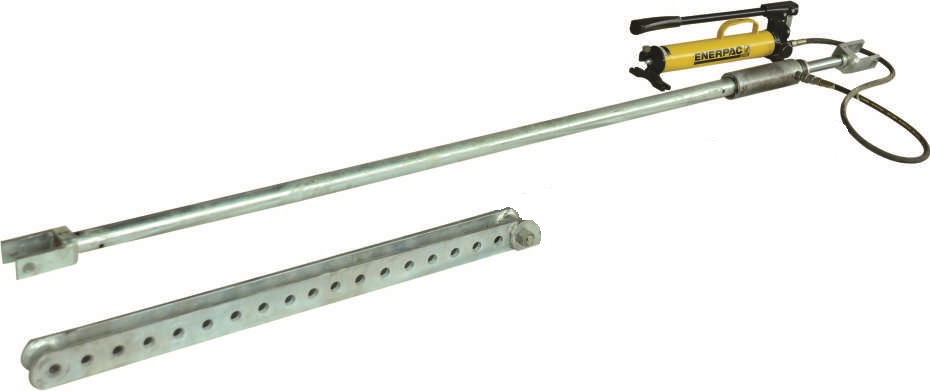

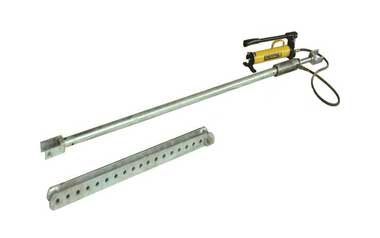

These are used for replacing defected / broken insulator. The compressive load applied on insulator strings are by means of manually operated hydraulic power system.

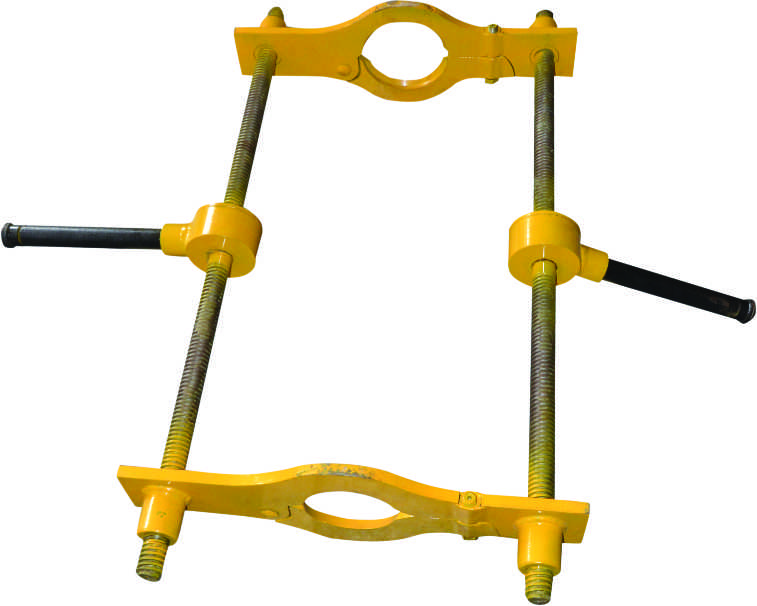

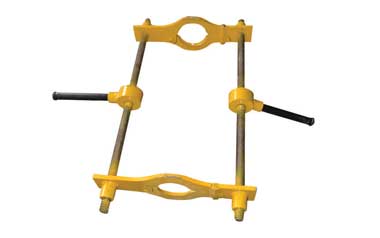

These are used for replacing defected / broken insulator. The compressive load applied on insulator strings are by means of manually operated screw jack system.

These are manufactured as per IS spec. no. 5604-1984 for universal gearless hand operating and lifting machines. It is a portable machine with a multiple uses with min. effort, all sorts of operations can be performed easily-pulling, lifting and lowering. The complete unit can be carried and operated by one man and, due to its ease of operation, no special skills is required.

These has built in overload protection device, automatic double pawl braking system and double cover protection fitted with sealed bearings. Require low effort to lift the maximum load.

These has premium grade alloy load chain, drop forged and expertly heat treated hooks for greater strength and max. Wearing capacity. Its high quality materials ensure light weight without infringing reliability. Low weight, compact sizes and featured with minimum lever effort for maximum load condition.

These are fitted with forged, Quenched and tempered, steel alloy yellow pins. Working load limits, as per relevant IS specification are embossed on every shackle.

These clamps are used to splice two end of different wire rope or to make eyes at wire rope end.

Safety Helmets Made of high quality polymer, which increase its strength and stability. Soft feel inner harness reduce fatigue long hours working. Light in weight. Comes with universal adjustable chin strap. Unique 4 point cradle for reduction of point impact. Triple corrugation of the shell giving it an increased impact resistant quality. -12 Different shades available. -Confirming IS 2925:1984 -Director general of mines & safety (DGMS) certified -Central labor institute (CLI) approved. -Central mining research institute (CMRI) approved.

Safety belt full body harness Karam make with two chest dD ring “Class L” with 108 Mtr. Energy absorbing double PP lanyard & hook.

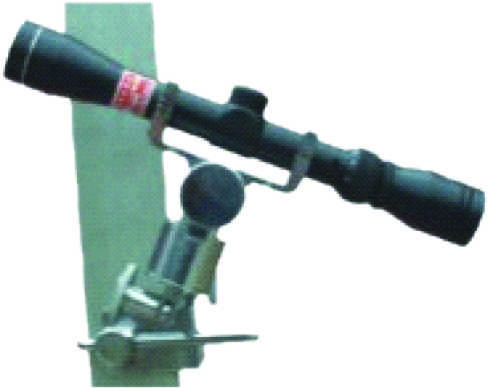

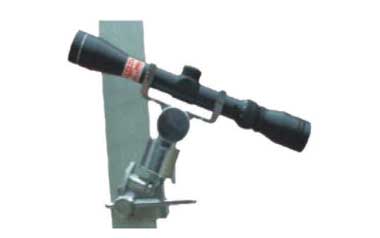

APPLICATION: Sag scope is used to observe the conductor sag during final sagging of conductor and it measure the sag level precisely. SPECIFICATIONS: Zoom type sag scope Monocular Optical magnification factor of 4.0 Can be mounted on steel angles with triangle ranging Can be mounted on steel angles with width ranging from 56 mm to 125 mm Mass: 1.6 kg

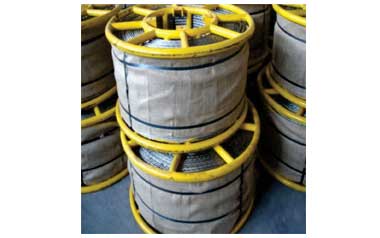

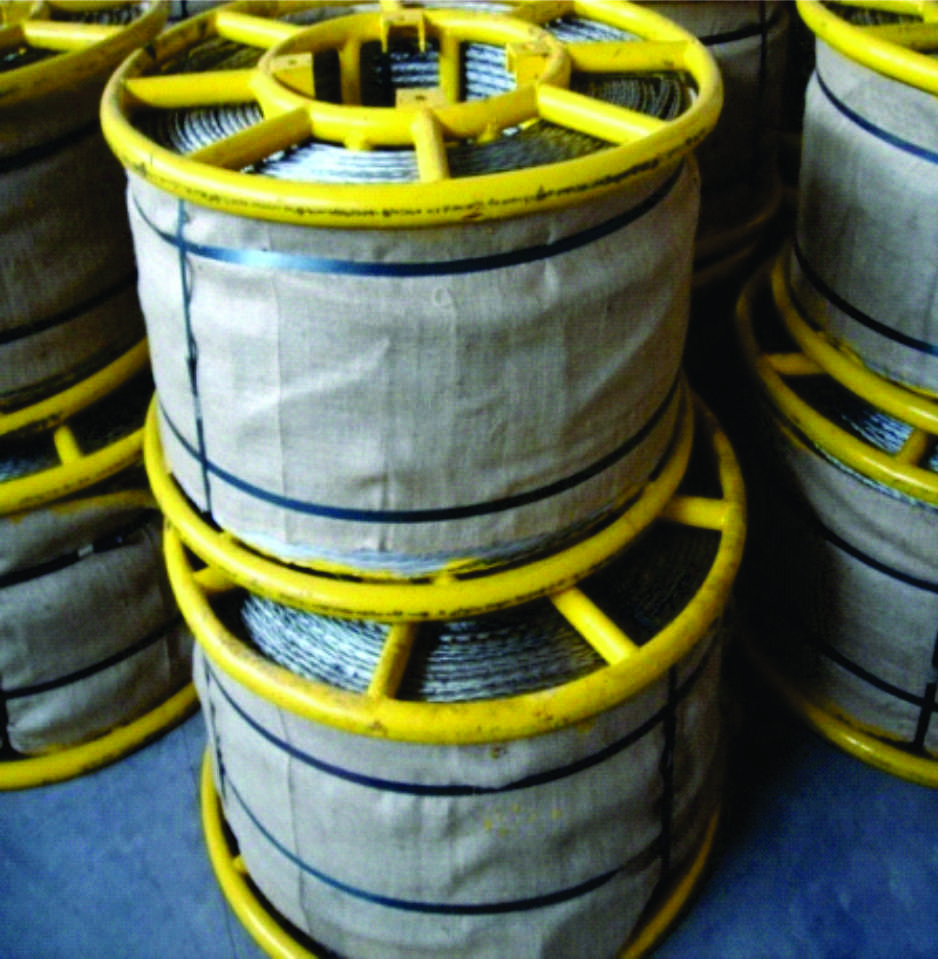

Anti twisting steel rope is specially braided from 12 strands of high strength, high flexible galvanized steel wire. The braided steel strand has high flexibility, complete stability to rotation under tension force. It can homogeneously distribute the pressure between the elementary wires. The special rope can increase efficiency during the overhead transmission line stringing work. The rope is packed in steel drum which can be installed directly on the reel winder of puller.

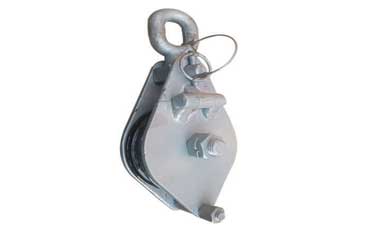

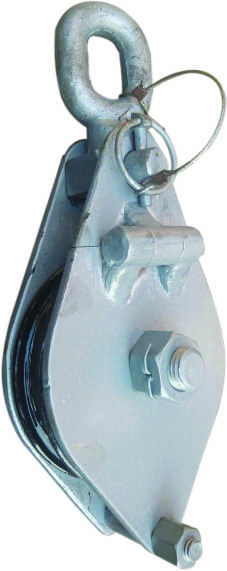

These are the latch pin type open pulley in which entire pulleys are covered within the alloy steel plate instead of alloy steel sheet. For better security and swiveling, the shank of the hook joins together with pivot of the pulley by means of hot forging which makes hook and frame integrated. These pulleys are more sturdy and rigid against rough use, it also has more loads bearing capacity to weight ratio.

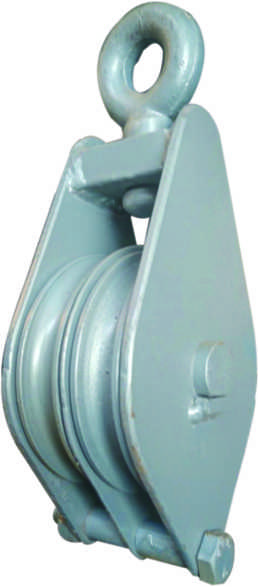

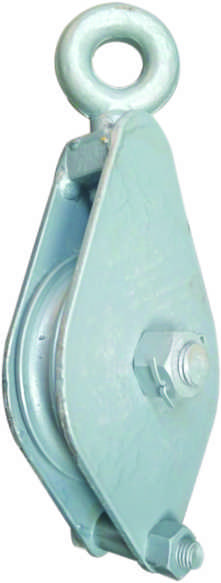

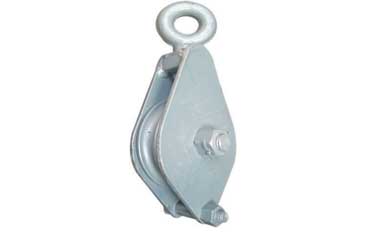

These are closed type pulleys covered within the alloy steel plate instead of alloy steel sheet. For better security and swiveling, the shank of the hook joins together with pivot of the pulley by means of hot forging which makes hook and frame integrated. These pulleys are more sturdy and rigid against rough use, it also has more loads bearing capacity to weight ratio.

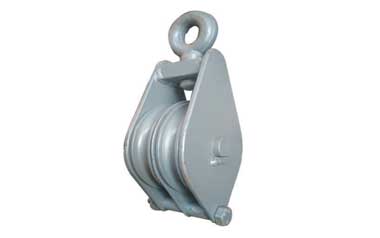

These are close type pulleys in which both pulleys are fixed in parallel fashion and covered within the alloy steel plate instead of alloy steel sheet. These cover plate solve the purpose of security cover as well as frame of the pulleys, one of the side cover has integrated projection which facilitate easy attachment of swivel joint. For better security and swiveling, the shank of the hook joins together with pivot of the pulley by means of hot forging which keep hook and pivot integrated. These pulleys are more sturdy and rigid against rough use also it has more loads bearing capacity to weight ratio.

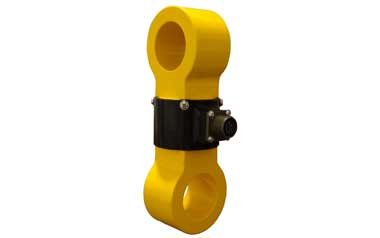

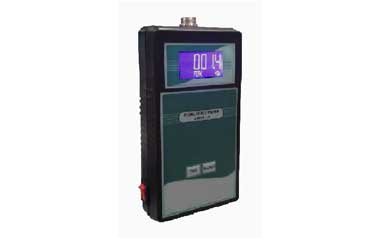

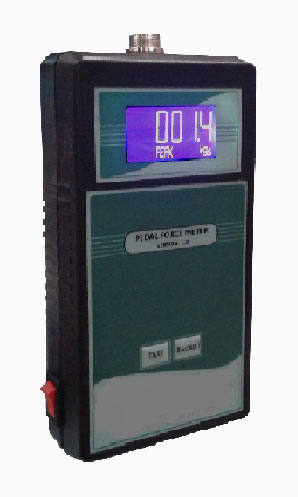

These dynamometer are used to monitor final sagging load applied on conductor during stringing in power transmission line or where ever it is required to measure applied load on any machine or equipment.

These dynamometer are used to monitor final sagging load applied on conductor during stringing in power transmission line or where ever it is required to measure applied load on any machine or equipment.

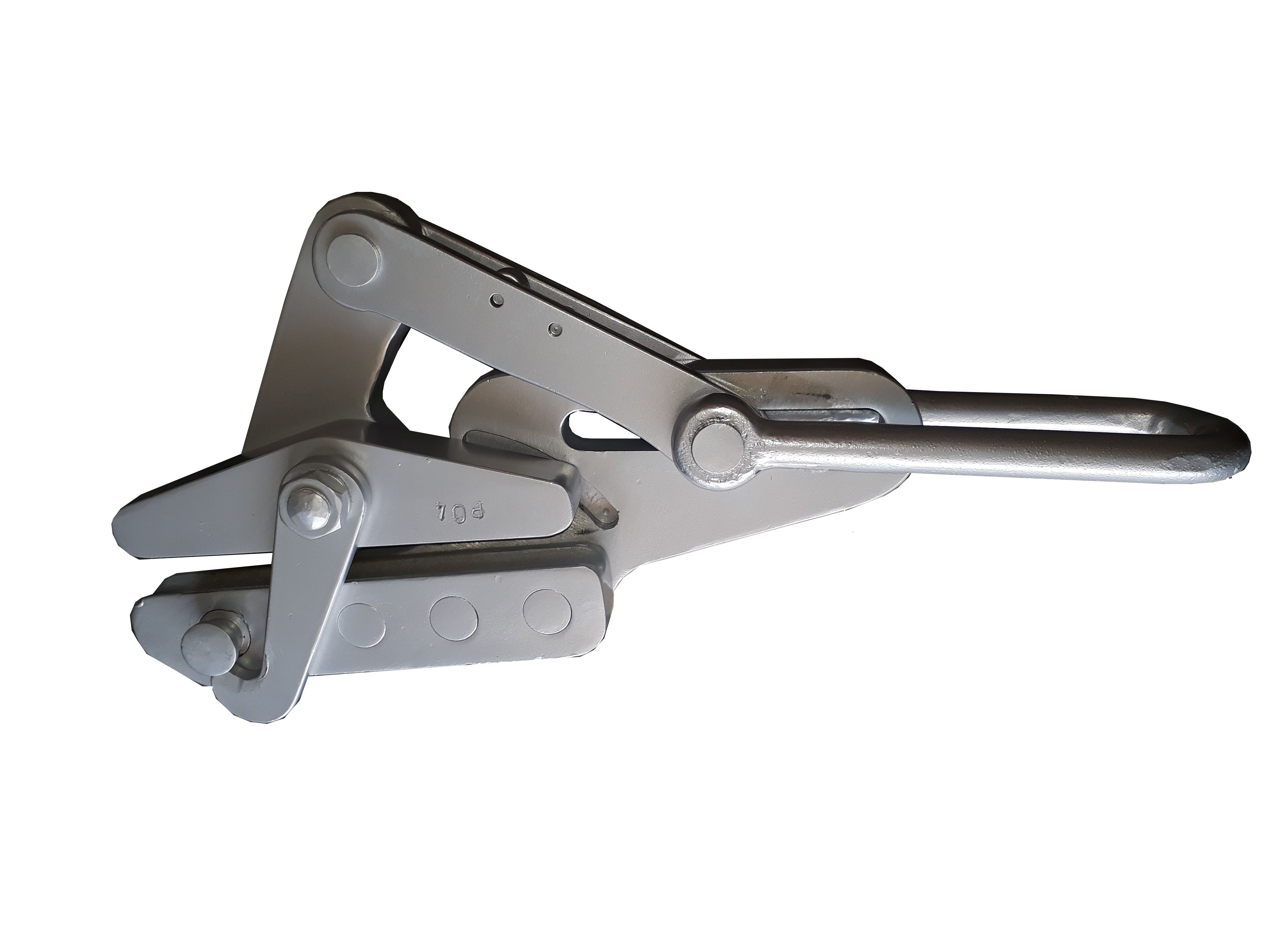

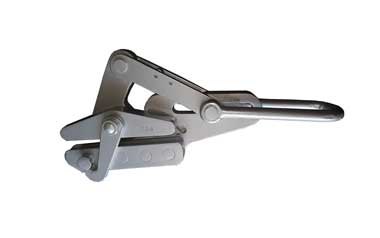

These clamps are use wherever self griping of conductor is required. It is made of Alluminium alloy and machined and zinc plated. The clamps are assembled from its different Alluminium alloy parts. The grooves are suitable for 28-32mm diameter of the conductor. The salient feature of these clamp are its very light weight capacity in compression to conventional steel alloy clamps.
